Carbon Offroad 6000lb ATV Small 4X4 Winch
Carbon Offroad 6000lb ATV Small 4X4 Winch
Regular price
$599.00 AUD
Regular price
Sale price
$599.00 AUD
Quantity
In stock
Couldn't load pickup availability

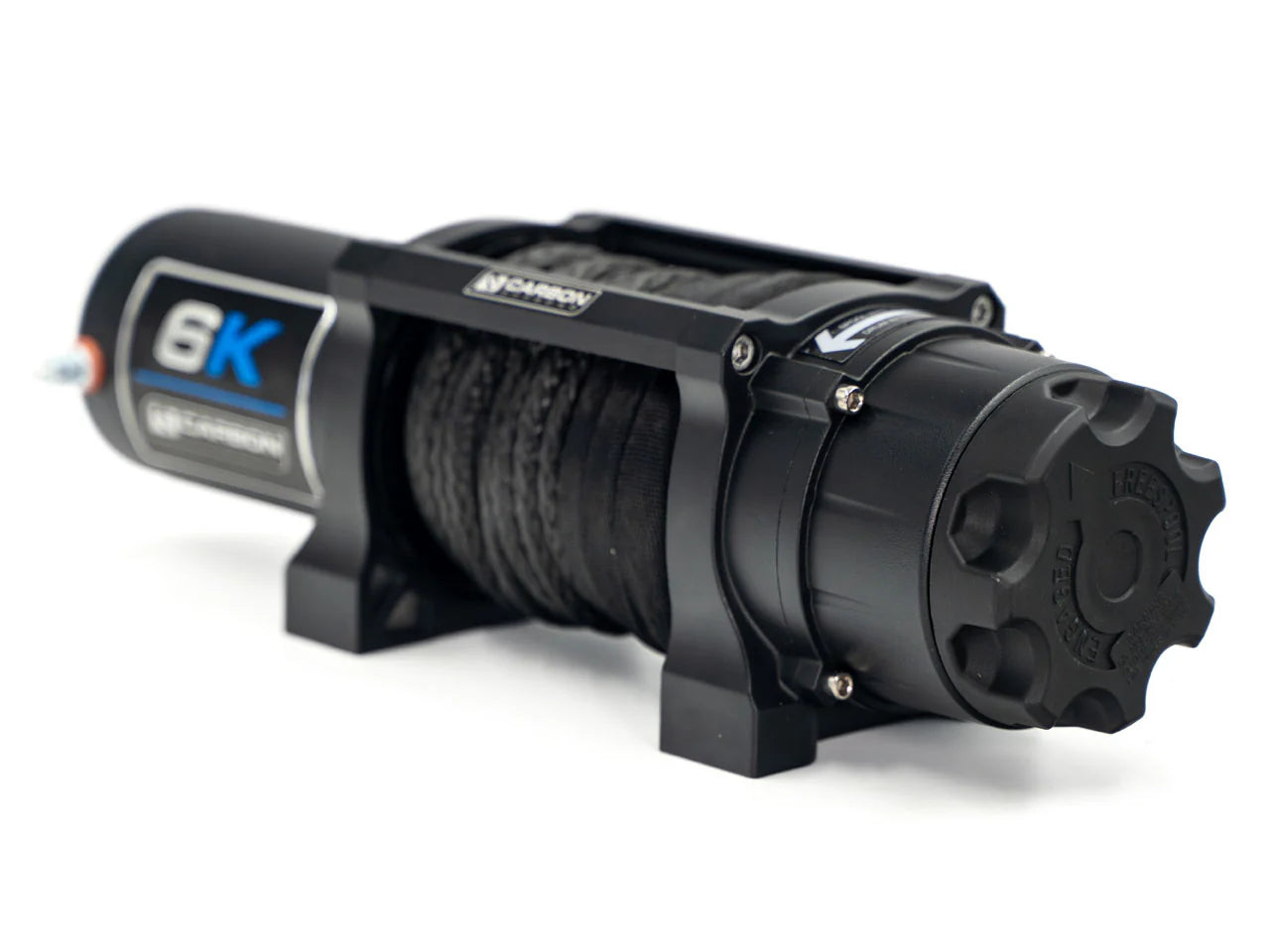

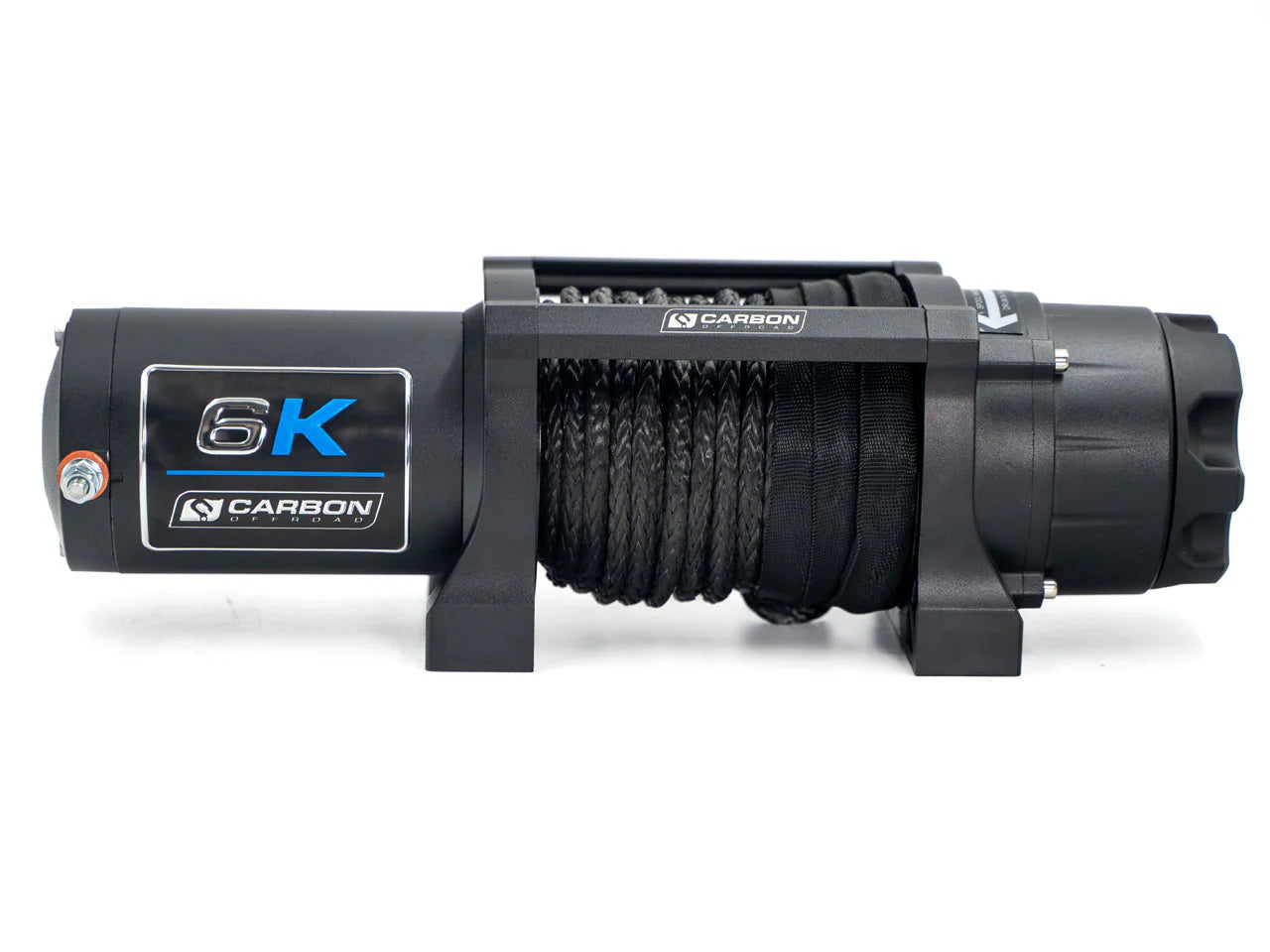

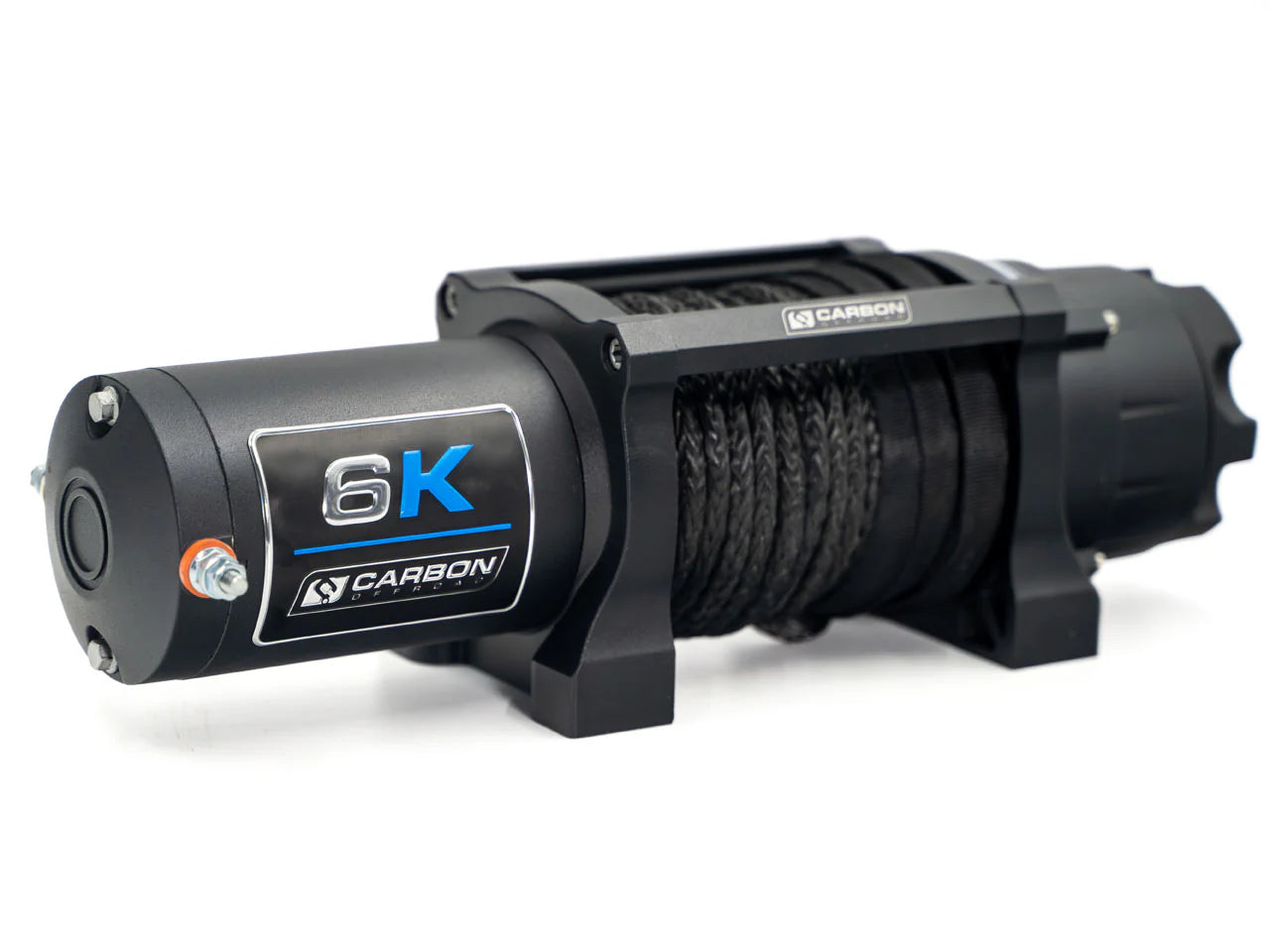

Carbon Offroad 6000lb ATV/Small 4X4 Winch
SKU: CW-XD6

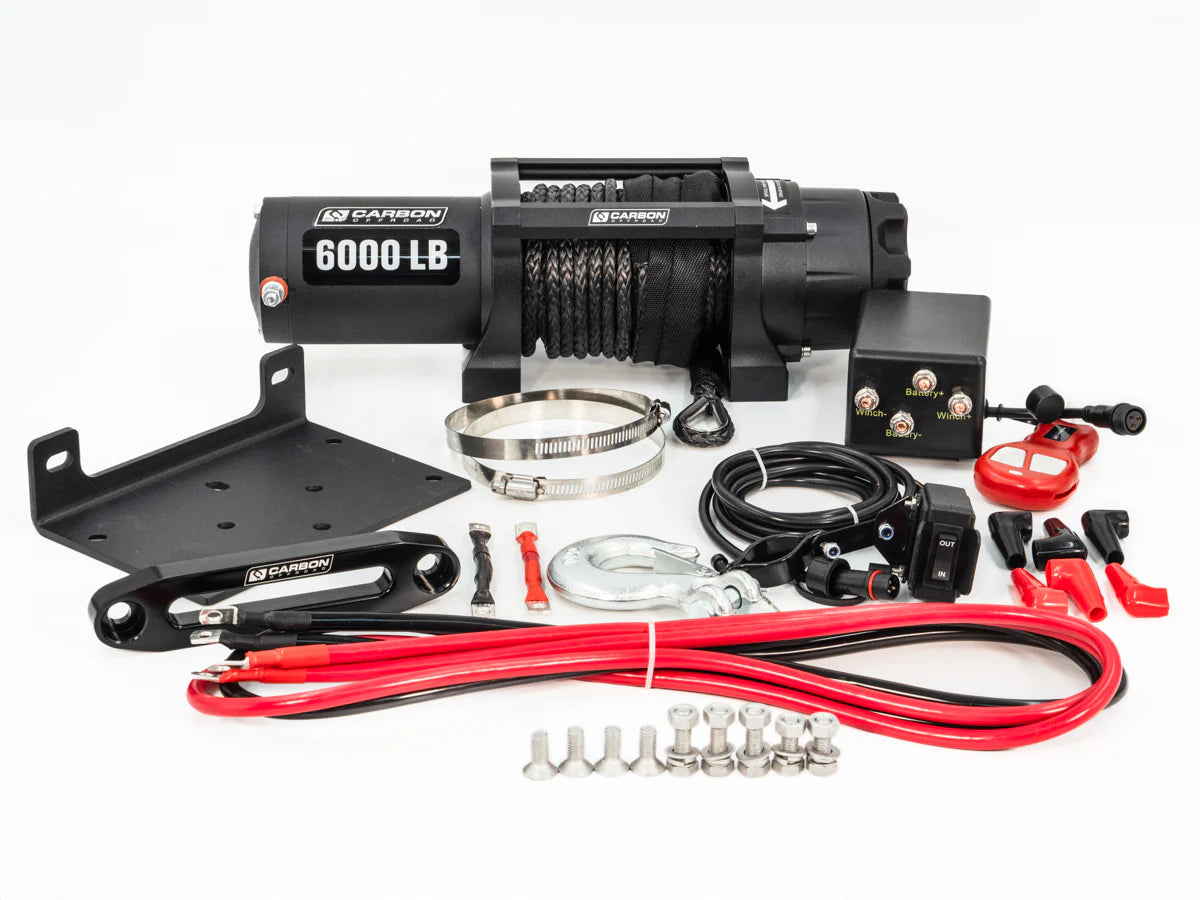

Carbon Offroad 6,000 lb ATV Winch – Compact, versatile winch for ATVs, small 4WDs, trailers, caravans, and boats. Features sealed motor & geartrain, permanent magnet motor, dual wired & wireless remotes, and fail-safe braking.
Technical Features
- Part number: CW-XD6
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
- Synthetic Rope: 16m x 6.5mm diameter
- Drum Diameter/Length: 51mm x 122mm
- Mounting Bolt Pattern: 167mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 385 x 115 x 119mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
Speed & Performance Breakdown
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8(4.2) | 15 | 1/6000(2725) |
| 2000(1814) | 9.5(2.9) | 125 | 2/5350(2430) |
| 4000(3629) | 7.2(2.2) | 190 | 3/4780(2170) |
| 6000(5443) | 4.6(1.4) | 240 | 4/4270(1940) |
